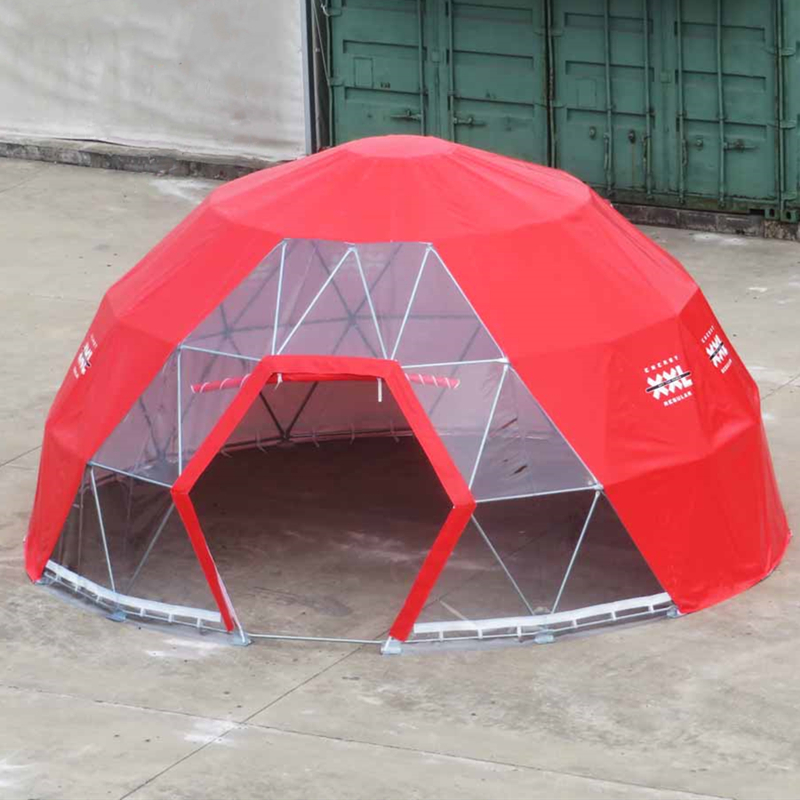

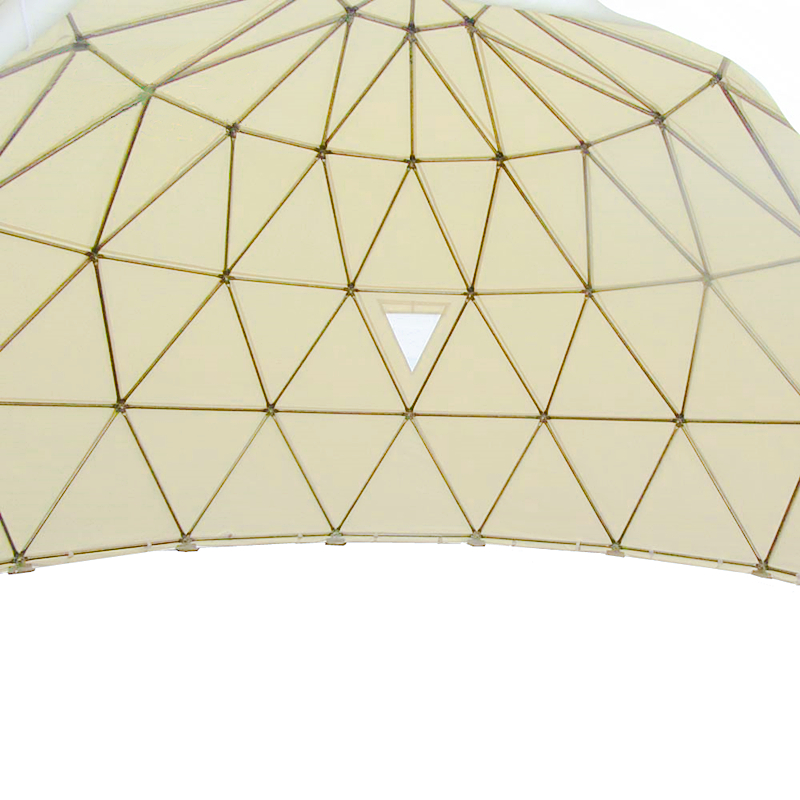

Geodesic Dome Tent E13E

The geodesic dome tent is getting more and more popular. The tent structure adopts the high-quality steel and PVC coated polyester fabric.

Quantity:
  • E13E
  • Smart Expo
  • Φ6m x H3m etc.

Geodesic Dome Tent is not only offering a unique shape, but also it has strong and sturdy structure. Based on the most stable triangles in the geometry, formed by the combination of a sphere, but the spherical interior does not need any object to support, which is a robust and solid structure.


Technical Specification

Diameter 6m
Height 3m
Leg Profile 26*2mm
Wind Load Maximum to 100kg/h
Working Temperature  -35C° to 65 C°
Frame Material High-quality galvanized steel tubes
Cover Material Premium 850g/m² polyester with double PVC coated; fireproof, waterproof and UV resistance

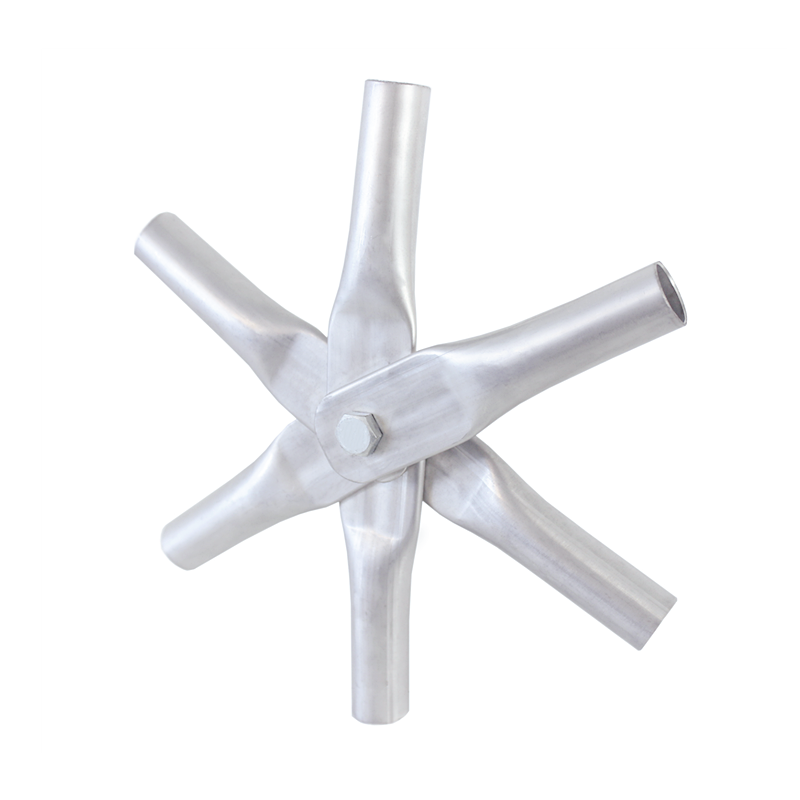

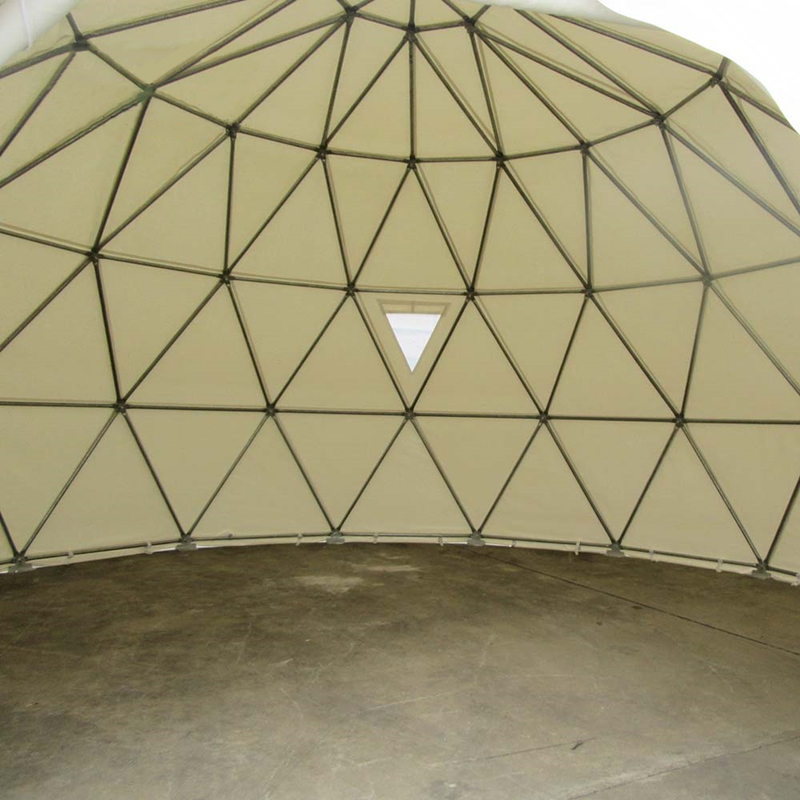

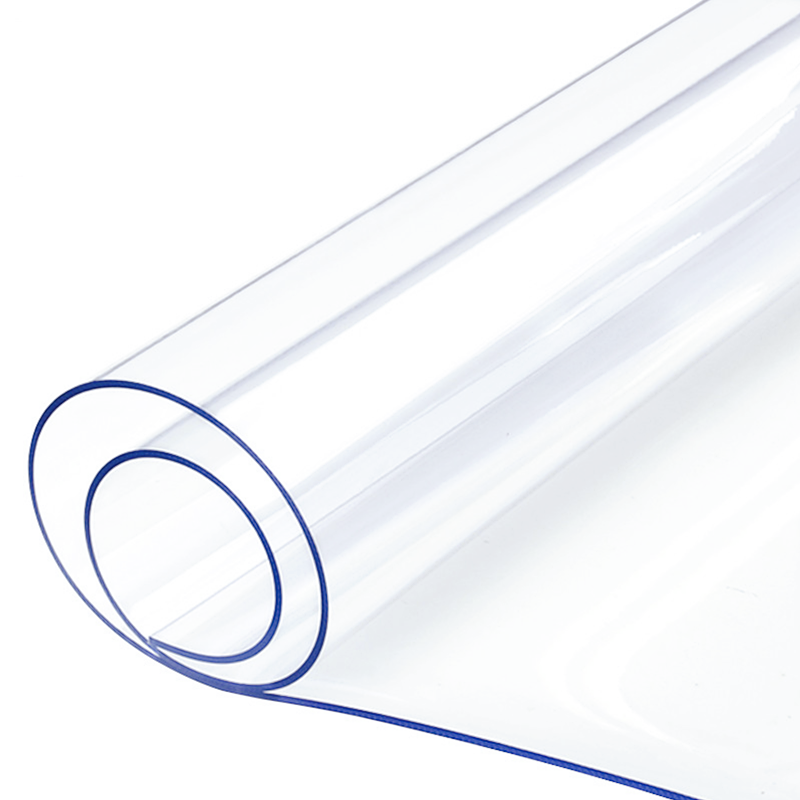

Details View

E13E-d1

E13E-d2

E13E-d3


Advantages

  1. Easy to carry and transport.

  2. Temporary or permanent use.

  3. Meets all building, fire and safety codes

  4. Easy to be assembled and dismantled, movable.

  5. Non inner pole and ground space 100% used.

  6. Printing logo are welcome, digital printing or silk printing are available.

  7. Frame in PE bag, fabric in PVC inner carry bag and PE outer bag.


Easy Structure

PVC material simply slots into channels in the aluminum framework - no bungee straps or ties are required.


Installation (in heavy wind)

  1. on cement or tarmac ground, the expansion screw would be needed.

  2. on sand and grass ground, the ground anchors would be needed.

  3. on marble or tile, the weight plate would be needed.

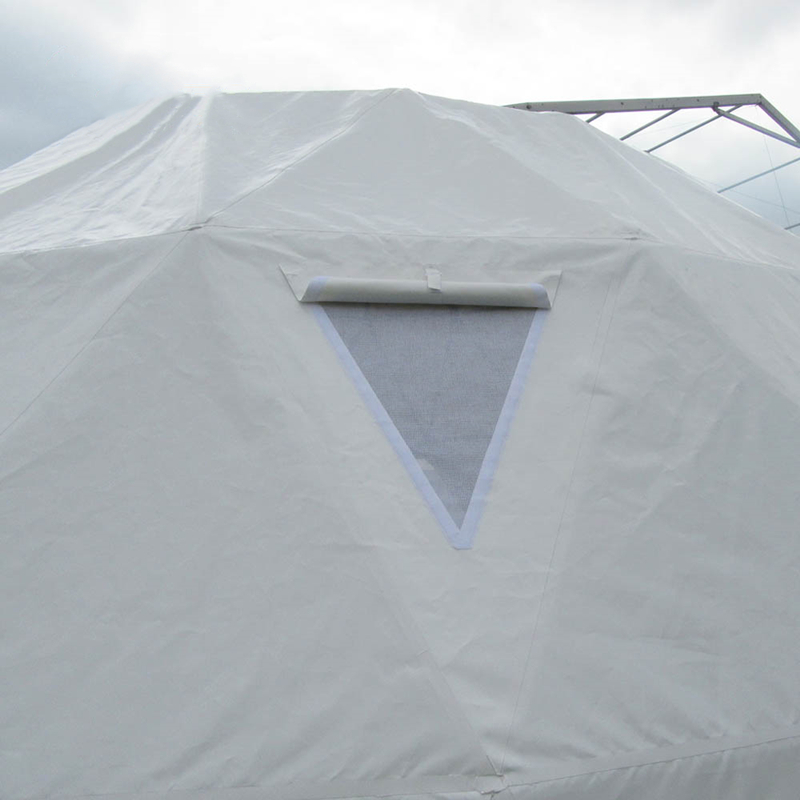

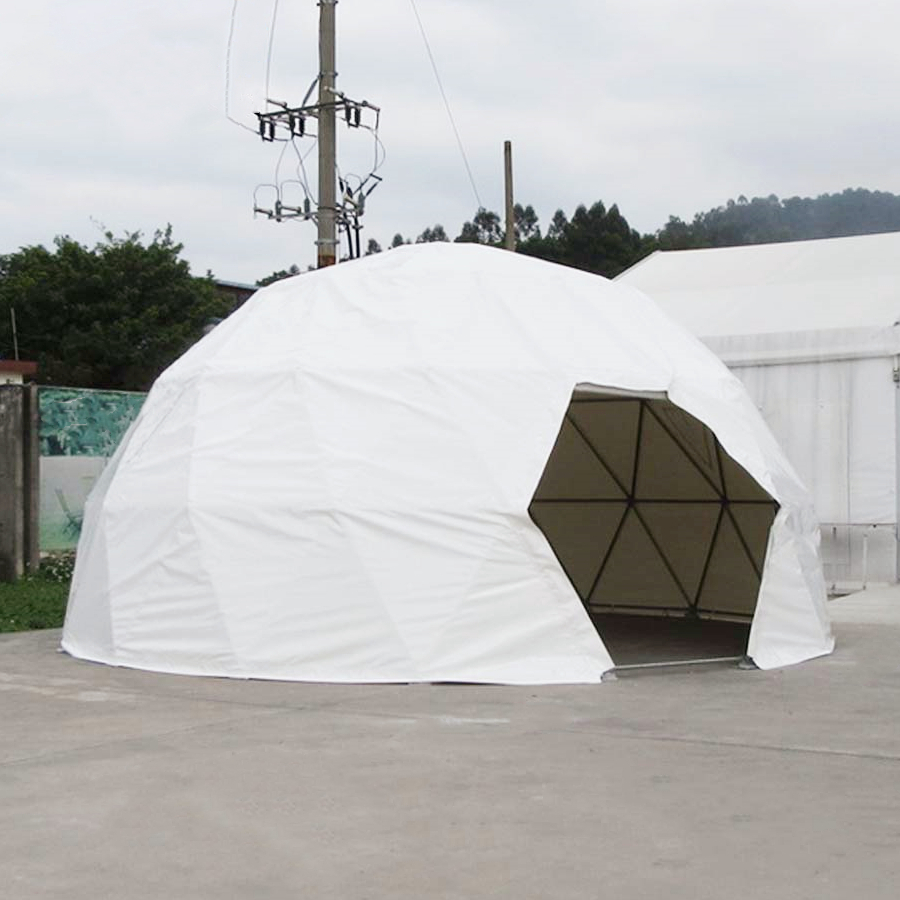

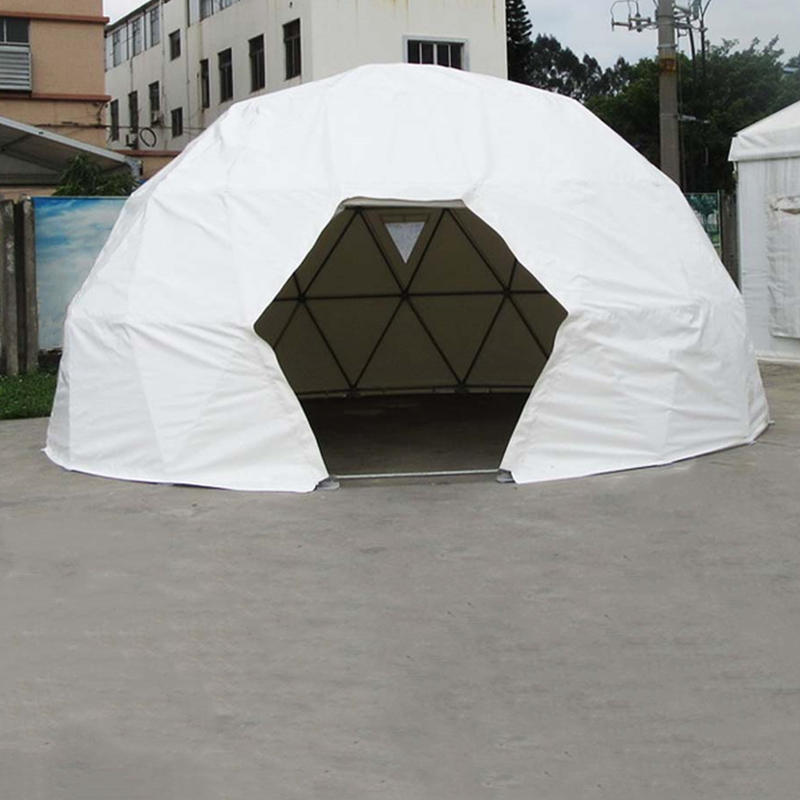

Application Samples

E13E-s1

E13E-s2

E13E-s3

E13E-s4
