E04H
Smart Expo
60*120cm, 60*160cm, 60*200cm etc.
This restaurant menu light box has different section for selection as per your needs, you can put 3pcs/4pcs/5pcs/6pcs/7pcs graphics on the light box system. Wall amount or ceiling hang both available.
Features
Structure: aluminum frame, LGP panel, edge-lighting LED 2835 light source.
Input voltage: 12V/24V
Magnetic front panels, easy to change posters
Super slim, only 25mm thickness
Horizontally installation with multiple light boxes
Specially used for restaurant, hotel, cafe store etc.

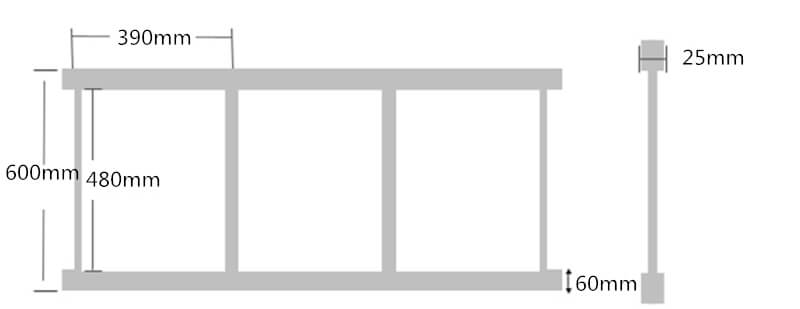

Size Table
| Frame Size (mm) | Light Box (pcs） | Light Box Size (mm) | Poster Size (mm) | Visual Size (mm) |
| 600*1200 | 3 | 480*390 | 470*380 | 460*370 |
| 600*1600 | 4 | 480*390 | 470*380 | 460*370 |
| 600*2000 | 5 | 480*390 | 470*380 | 460*370 |
| 600*2400 | 6 | 480*390 | 470*380 | 460*370 |
| 600*2800 | 7 | 480*390 | 470*380 | 460*370 |

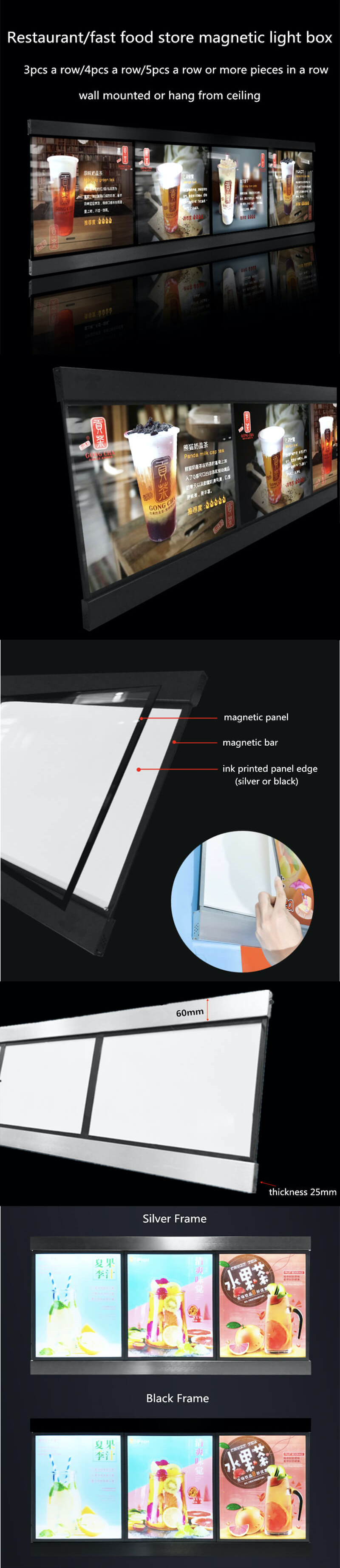

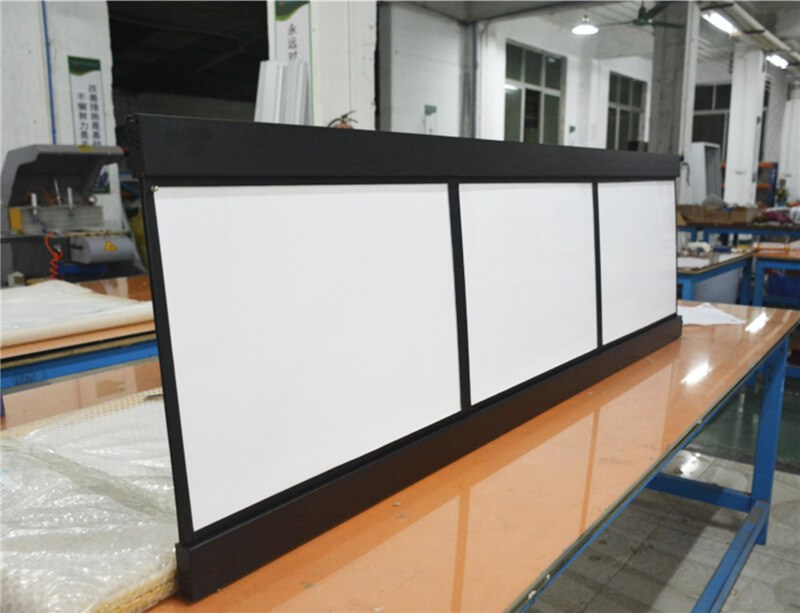

Details Show

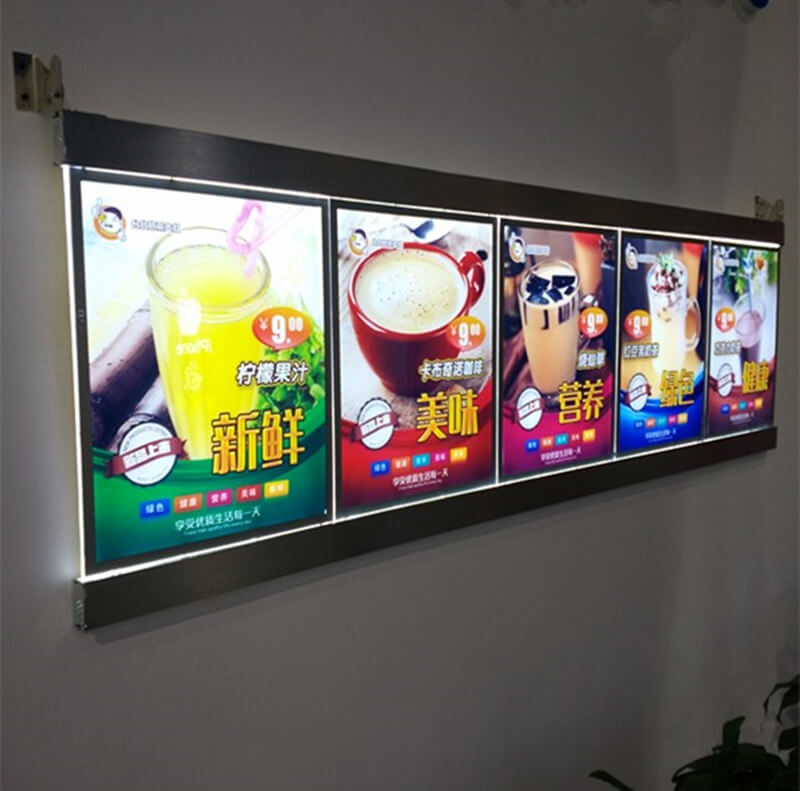

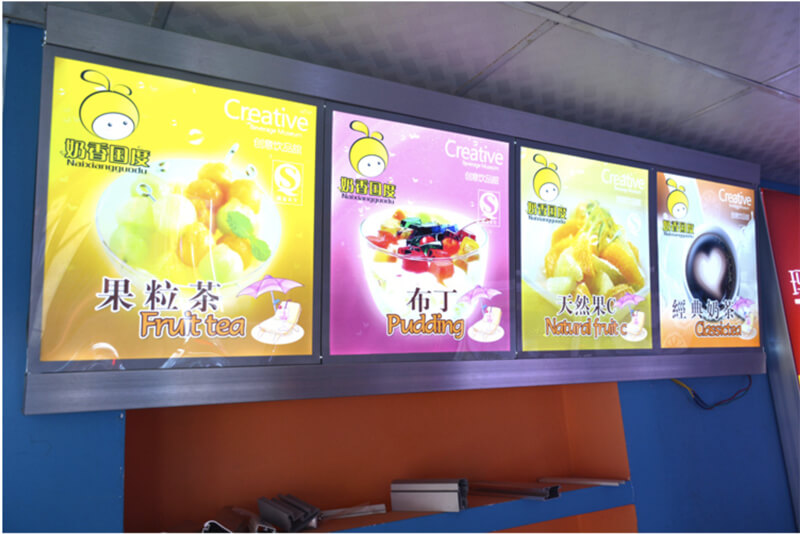

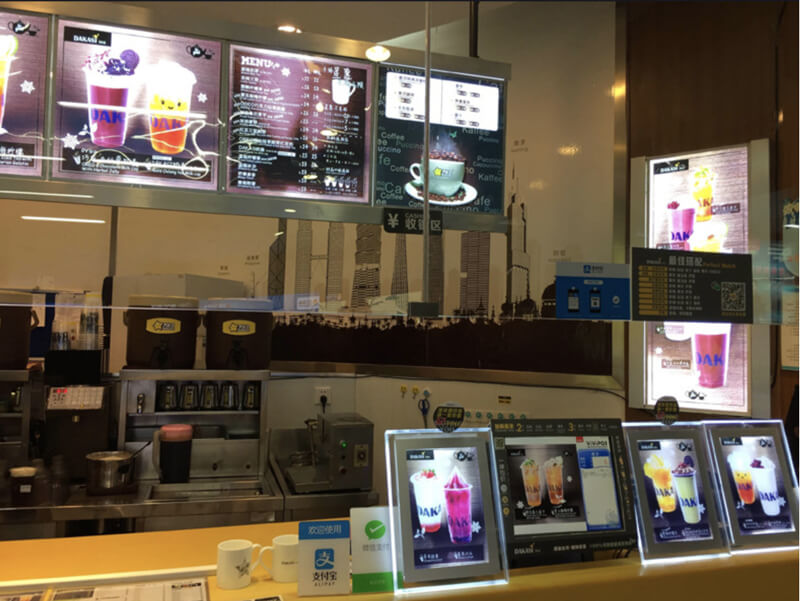

Application Sample
